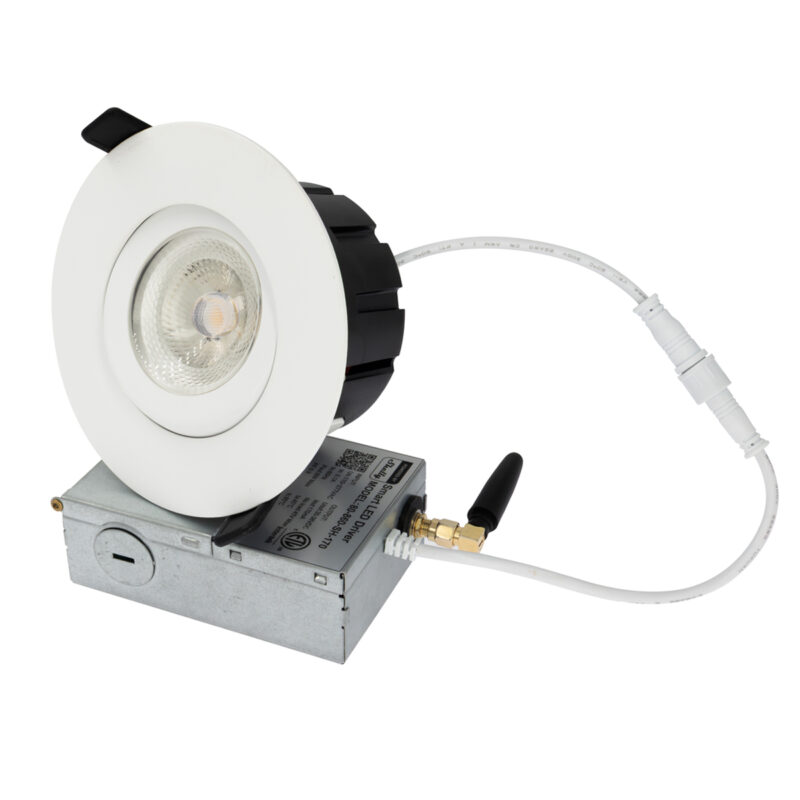

The HiluX DS4 US is the 4-inch smart recessed downlight built to the US recessed-can standard –
same LED, same driver as the DS8 US, only the size changes. Tunable white 2200–6000 K at 95 CRI, dimmable to
a flicker-free 1 %, controlled over native Wi-Fi and Powered by Shelly. No hub, no gateway. ETL certification in progress for
110–277 V. Finished in white.
Dimensions – HiluX DS4 US
- Face ø: 4.724″
- Cut-out: Ø 3.780–4.173″
- Depth: 2.323″
Smart, without the bridge
Every fixture ships with an integrated Smart LED Driver Powered by Shelly (model 80-860-SH-170).
Pair it to Wi-Fi in seconds, group rooms, schedule scenes, and control it with the Shelly app,
Amazon Alexa or Google Home – no proprietary bridge to buy or maintain. For custom installs it also
integrates with professional automation platforms such as Control4 through compatible third-party Shelly drivers.
One system. Lights included.
A HiluX spot runs on Shelly – the same platform behind smart switches, dimmers, energy meters, plugs,
sensors and blinds. One login, one automation engine, one system for the whole home. It works locally on your
own Wi-Fi, drops straight into Home Assistant, and needs no cloud account to run.
Shared specifications
- Luminous flux: 600 lm
- Power: 8 W (PF 0.9)
- Color rendering: CRI 95 (Ra95), SDCM ≤5
- Color temperature: 2200–6000 K tunable white, set in the Shelly app
- Dimming: app + in-app schedules, 1–100 %, flicker-free
- Input voltage: 110–277 VAC, 50/60 Hz
- Driver output: 30–38 VDC, 170 mA (Shelly Smart LED Driver 80-860-SH-170)
- Control: Wi-Fi, Powered by Shelly
- Ingress rating: IP44 (indoor, covered outdoor, bathrooms)
- Operating temperature: −4 to +104 °F
- Beam / tilt: 40° beam, Tilt 360° adjustable gimbal
- Certification: ETL / FCC / ISED / JA8 certification in progress (UL 1598 / CSA C22.2 No. 250.0).
- Rated life: L80/B20 50,000 h
- Warranty: 5-year limited
- In the box: fixture, smart driver, steel junction box
Why installers pick HiluX
- No bridge to sell or support – native Wi-Fi
- Control4-ready via compatible third-party Shelly driver
- High color rendering CRI 95, true whites
- Lever-nut connectors – tool-free daisy-chaining, spot to spot
- ETL certification in progress for US & Canada, 110–277 V
- Included steel junction box with knockouts
- Flicker-free dimming to 1 %
- IP44 rated – bathrooms and covered outdoor
