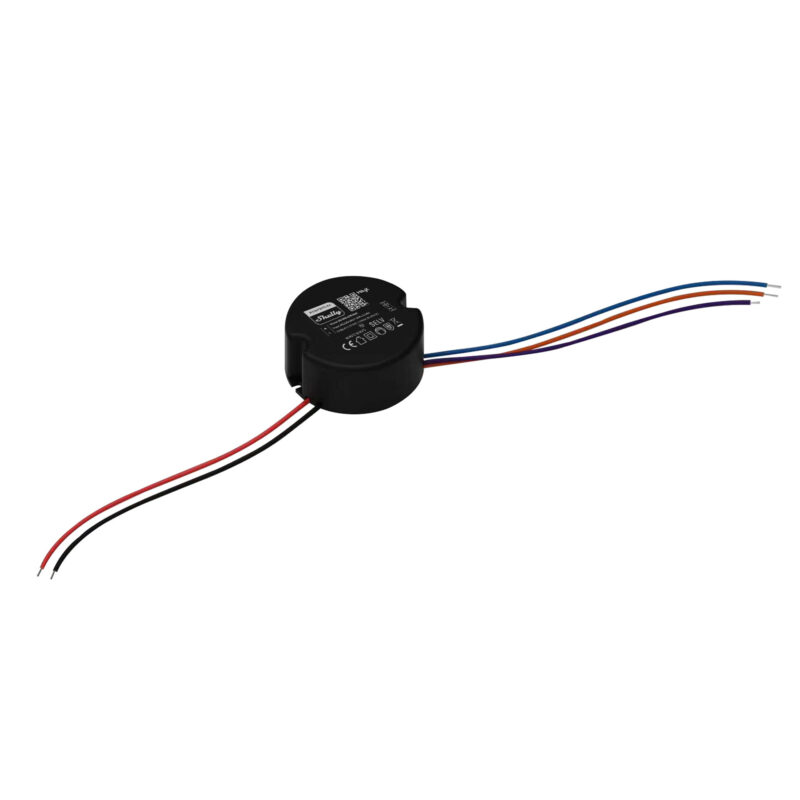

The HiluX LED Driver 200 mA – 22–26 VDC – Max 6 W is a smart retrofit LED driver, Powered by Shelly. Swap the original driver in an LED panel, troffer, downlight or strip for this unit and the same luminaire works with the Shelly app, standard push dimmers and Shelly BLU wall remotes from day one – no extra hub, no extra wall box.
Electrical specifications
- Output current: 200 mA
- Output voltage: 22–26 VDC
- Max power: 6 W
- Driver type: Constant current (CC)
- Input: 220–240 V AC, 50 Hz
- Control: Wi-Fi, Powered by Shelly
- Connection: push-Wago terminals; optional 8-pole daisy-chain connector box
Three ways to dim the same fixture
- Shelly app – scenes, schedules and remote control over Wi-Fi
- Standard push switch – no app needed
- Shelly BLU wall remote – wireless dimming from any wall
Daisy-chain ready
The optional 8-pole connector box (L, L, N, N, E, E, P, P) carries the 230 V supply and the push-dimming signal from one HiluX driver to the next – run one supply through a full row of panels or downlights and dim the whole group from a single switch. For a single fixture, wire mains straight into the push-Wago terminals and skip the connector box.
Available for professional and wholesale supply – contact us for pricing and delivery.
